Thermal imaging

posted on 10:46 PM on Saturday 15 February 2020

Got myself a FLIR One to use it for thermal imaging. First up is the Windows machine to see the hot spots.

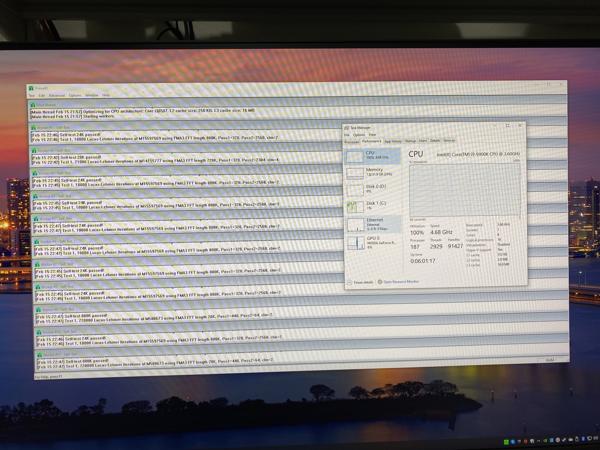

So I got PRIME running on all cores to generate as much heat as I could from the CPUs.

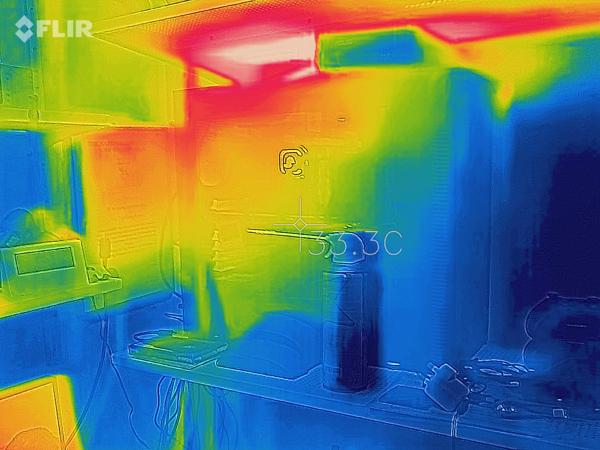

After I got it cooking for a while, here is the thermal image.

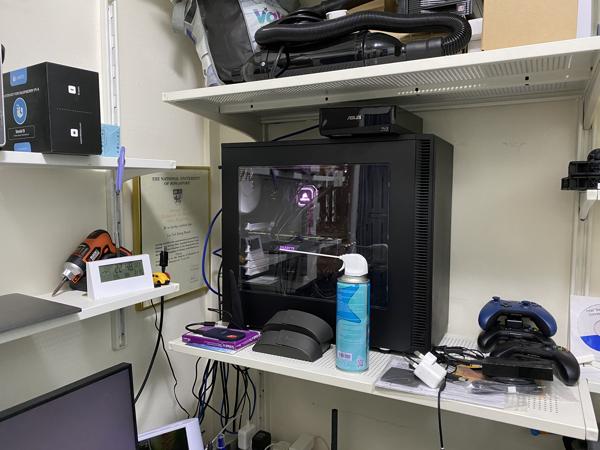

Here is the normal image for reference.

So the heat is mostly at the fan exhaust which make sense. And the temperature gradient clearly shows that the exhaust fans are working well in pushing the air out.
